Mobilis Movit Single-pole conductor rails |
 |
 |
 |

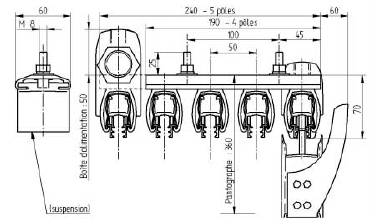

 | Mobilis 'MOVIT' is a high performance single pole bar system featuring aluminium conductor bars with stainless steel contact surfaces. This combination provides a product with the excellent conductivity of stainless steel while maintaining a light weight system at a competitive price. The system is available in intensities of 315, 450 and 630 Amps making it the ideal solution for many different applications including large overhead cranes, people movers and fairground rides. The rigid structure of the PVC enclosure provides true finger proof security and the standard system is suitable for both indoor and outdoor applications. With bar centres of only 50mm, the compact design not only minimises space requirements but also reduces voltage drop due to its low line impedence. |
As with Mobilis 'ELITE' one of the key features of Mobilis 'MOVIT' is the ease of assembly and installation due to the use of clip on components such as hangers and joint covers with no requirement for special tools.
Optional features are available as follows : - High temperature version available for ambient temperatures up to 55 deg C
- Expansion sections available for long systems
- High speed collector trolleys available for speeds up to 600 m/min
| Product | Type | Data File | Size | | Conductor Rail | Mobilis Movit Single-pole conductor rail (315-630 Amp.) | Movit brochure | 880KB |
|
|
|
 |
|
